Rope pergolas and green canopies
Tensioned rope canopies that carry a living roof over walkways, parking and terraces.
Acier projectOverviewWhat it is
A frame, a set of tensioned Jakob ropes and climbers: together they make a shaded, planted canopy. Ropes can run horizontally across the top, or vertically from the ground or planters up to a steel beam, with supports every few metres. The frame can be stainless, MS or aluminium; ropes and fittings are always stainless.
For Godrej Properties, Ø10 mm Jakob ropes work as tension members, holding the pergola structure from the top and diagonally, while the climbers grow over the canopy.
Options
Plan itPergola drawing or planner
Enter the length, the span and the height, and choose the rope spacing. The sheet, the details and the quantities update as you go. Switch to Planner to see it grow.
Planner
Technical dataSizes and figures
Jakob stainless ropes for pergolas
| Rope Ø (mm) | MBL, typical (kN) | Weight (kg/100 m) |
|---|---|---|
| 4 | 13.1 | 7.9 |
| 5 | 20.6 | 12.4 |
| 6 | 29.6 | 17.8 |
| 8 | 52.7 | 31.7 |
| 10 | 82.4 | 49.5 |
| 12 | 118.0 | 71.3 |
Frame materials
| Frame | Notes |
|---|---|
| Stainless steel | Premium, coastal sites |
| Galvanised MS | Robust, powder-coated in any colour |
| Aluminium | Light canopies |
PhotosIn use
What we useProducts
ProjectsBuilt by Acier

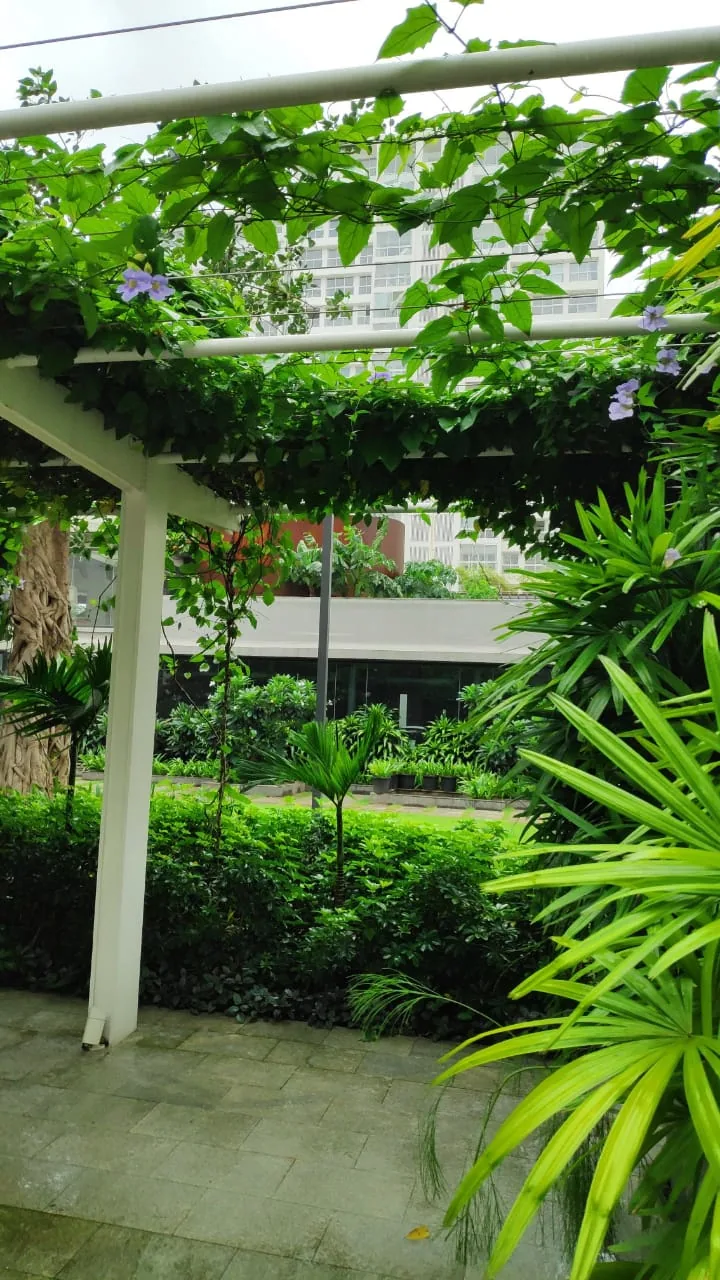

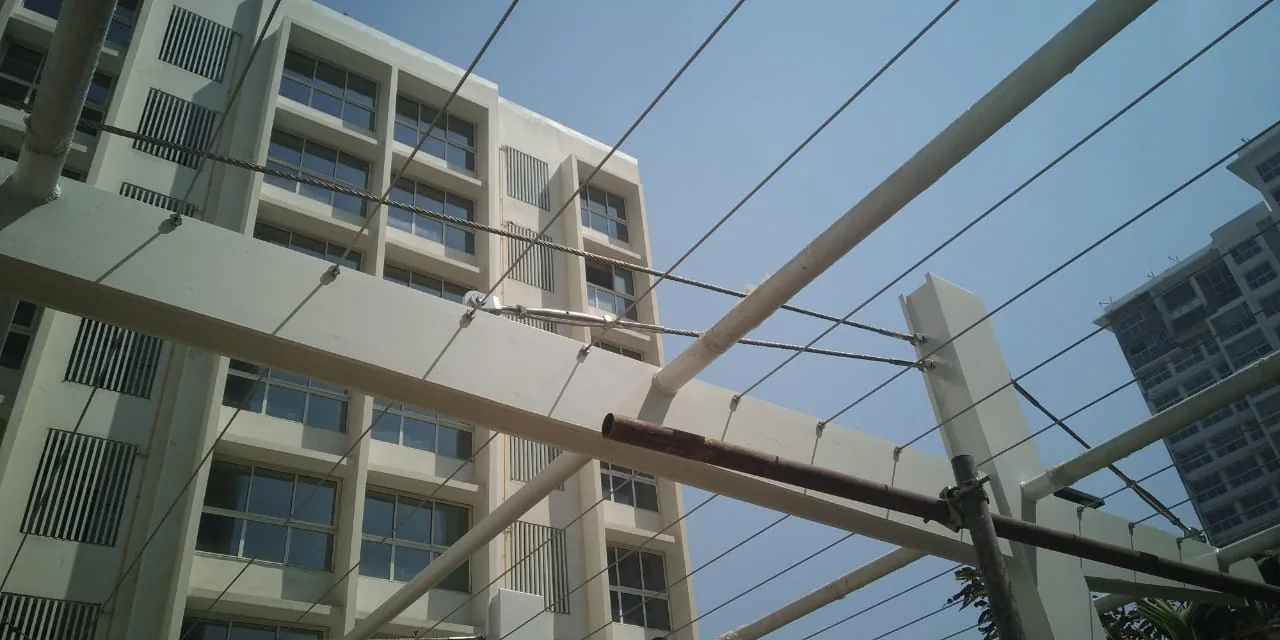

Green-canopy pergola, Godrej Properties
A rope-hung pergola for Godrej Properties in Mumbai that puts parking under a living canopy, with Ø10 mm AISI 316 tension ropes holding the structure.

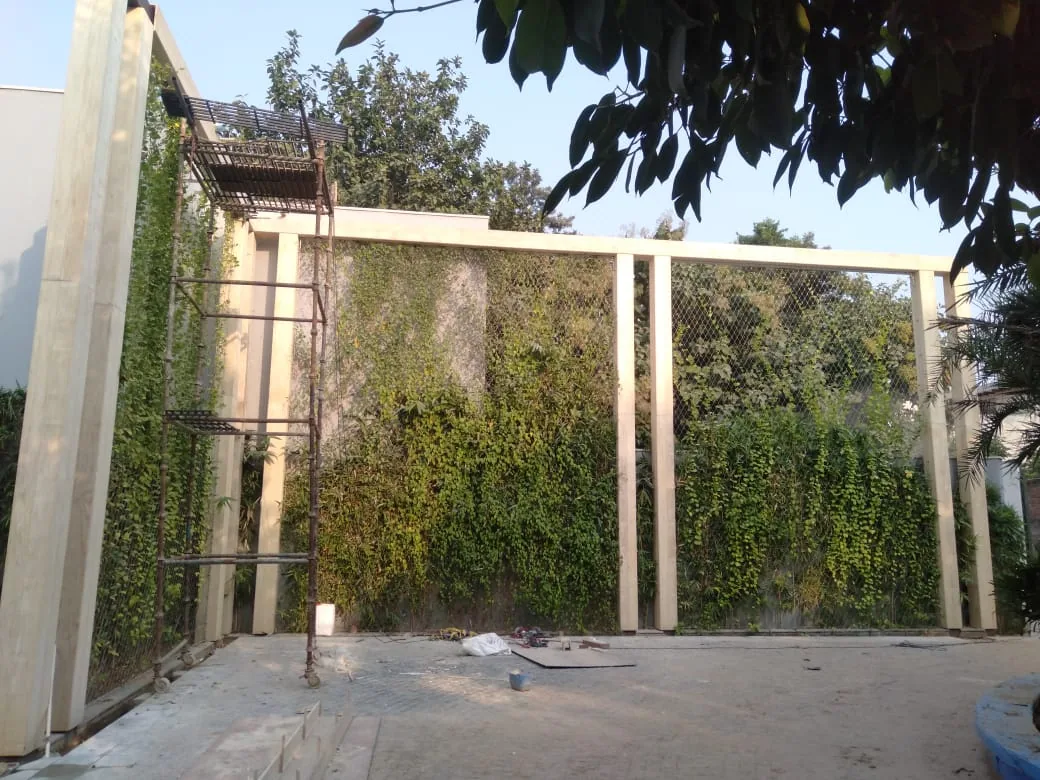

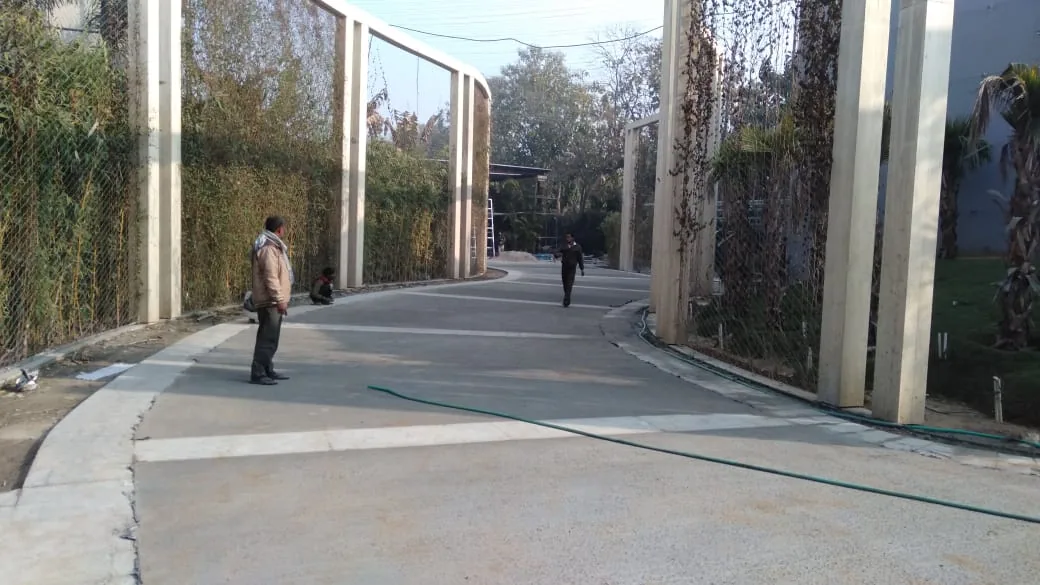

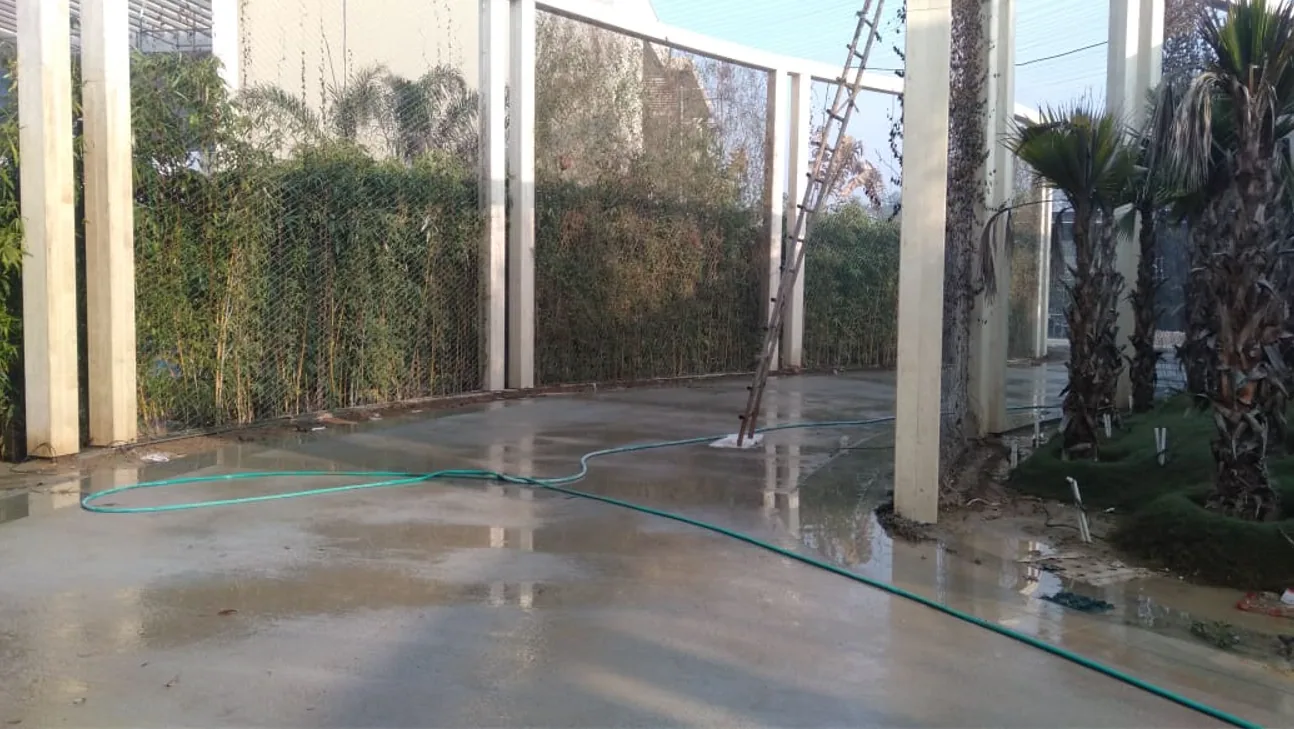

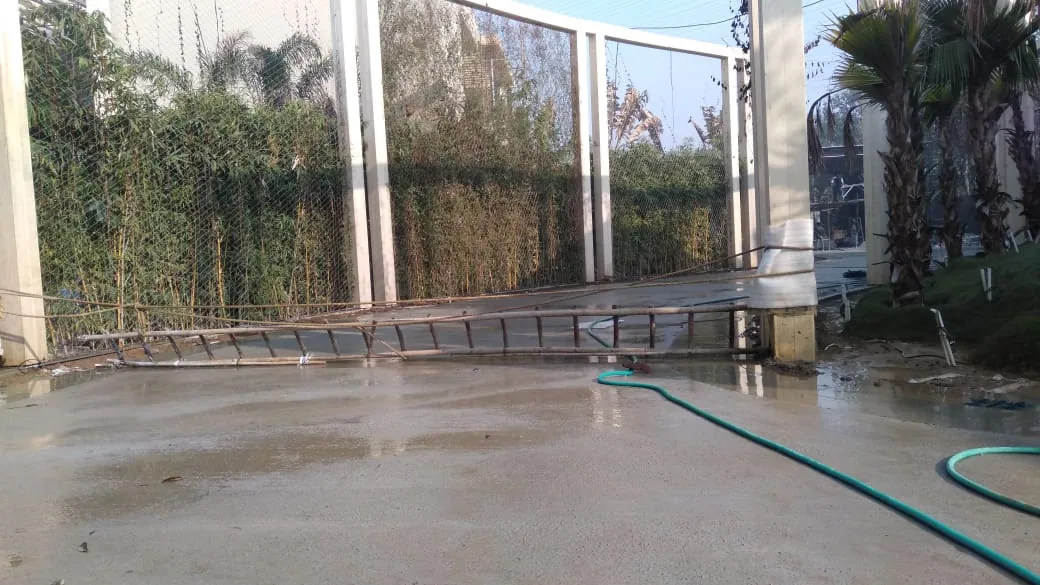

Webnet green canopy, private farmhouse, Delhi
A farmhouse driveway in Delhi turned into a green passage under a Webnet trellis canopy, planted with bamboo and climbers.
DownloadsCatalogues and drawings
Jakob catalogues open on jakob.com, so you always get the current edition.
QuestionsFrequently asked
How long until the canopy is green?
With fast climbers, beds or planters at the posts and drip irrigation, most canopies fill in within 12 to 24 months.
Horizontal or vertical ropes?
Horizontal ropes make a roof of green over parking and walkways. Vertical ropes make green screens and colonnades, hung from a beam with supports every few metres.
Can a pergola frame be aluminium?
Yes, for lighter canopies. We size the frame for the rope pretension and the plants.
Read moreGuides
Green façades explained: cables, Webnet or trellis?
The three main ways to support climbing plants on a building, and how to match each one to the plants, the wall and the look you want.
Will climbing plants burn on stainless steel ropes or mesh?
The question we are asked most about green façades in India. The short answer is no. Here is why, and what really stresses plants in the heat.
