Construction safety nets

Jakob fall-arrest nets to EN 1263-1 type S, and debris nets, for work at height on buildings and bridges.

StandardEN 1263-1, type S

NetØ5 mm polypropylene

Border ropeØ12 mm, 30 kN

Mesh45, 60 or 100 mm

Jakob reference

OverviewWhat it is

Work at height needs a net that catches people. Jakob’s type S fall-arrest net to EN 1263-1 is the common type in construction: high-tenacity polypropylene, Ø5 mm cord, with a Ø12 mm border rope rated at 30 kN, hung horizontally below the working area.

Every net is made to size. Choose a 100 mm mesh for fall arrest, or 45 and 60 mm where smaller tools and debris must be stopped too. Debris nets on scaffolds and façades complete the protection.

Options

Fall-arrest net, type SØ5 mm polypropylene, mesh 45, 60 or 100 mm, Ø12 mm border rope (30 kN). Standard, green, orange, black, dark green, white, blue or red

Knotless PP net, Ø3 mmMesh 45, 100 or 120 mm, for edges and openings

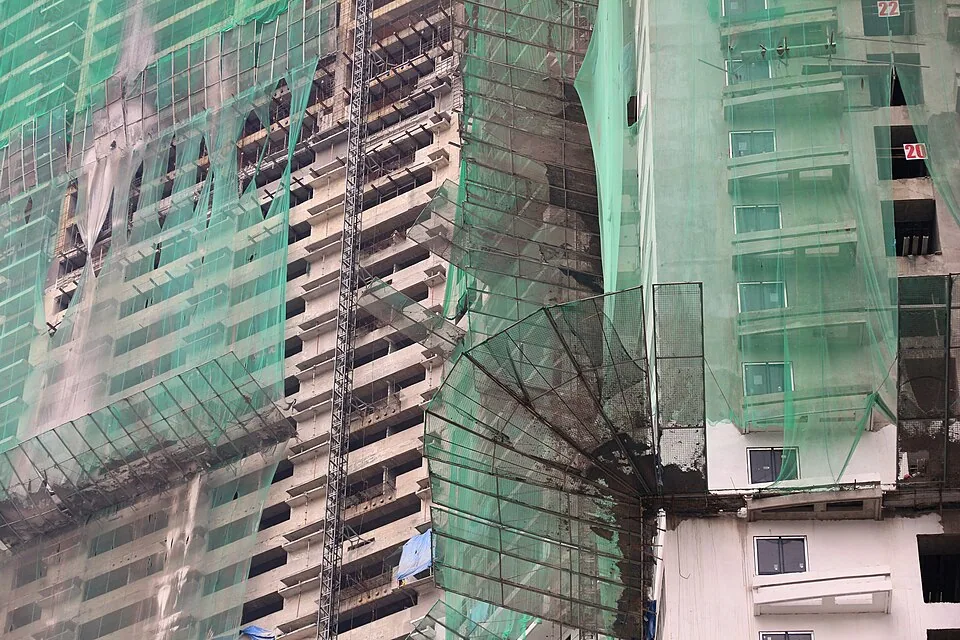

Debris netsKnitted HDPE, fine mesh, for scaffolds and façades

SizesEvery net made to size, with border ropes and fixings

Plan itPlan your safety net

Interactive · design it yourself

Planner

Interactive: change the settings, move across the drawing

PermanentWhen the net should stay

Construction nets protect while the building goes up. Where a void, a stair or a helipad edge needs protection for good, a stainless Webnet net replaces them. Stairwell, void and atrium nets → Helipad safety nets →
