Stairwell, void and atrium nets
Webnet across stairwells, voids and atriums: it stops falls and dropped objects, and you still see through it.
Acier projectOverviewWhat it is
Open stairwells, voids and atriums are where people and things fall. A stainless Webnet net across the void, or around the stair, stops them without closing the space: from a few metres away the mesh almost disappears and the light stays.
We lace the net to a rope framework or a frame fixed to the structure. At Third Space, Udaipur, three spiral stair towers are netted in Webnet Ø2 mm / W 60 mm on a rope framework. For temporary protection during construction and fit-out, Jakob’s polypropylene and polyester nets do the job.
Options
Plan itStairwell and atrium net drawing
Choose a net across the void or around it, enter the void and choose the mesh. The plan, section, details and quantities update as you go. Architects can download the sheet with their name on it. Switch to Planner to see the mesh itself to scale.
Planner
PhotosIn use
What we useProducts

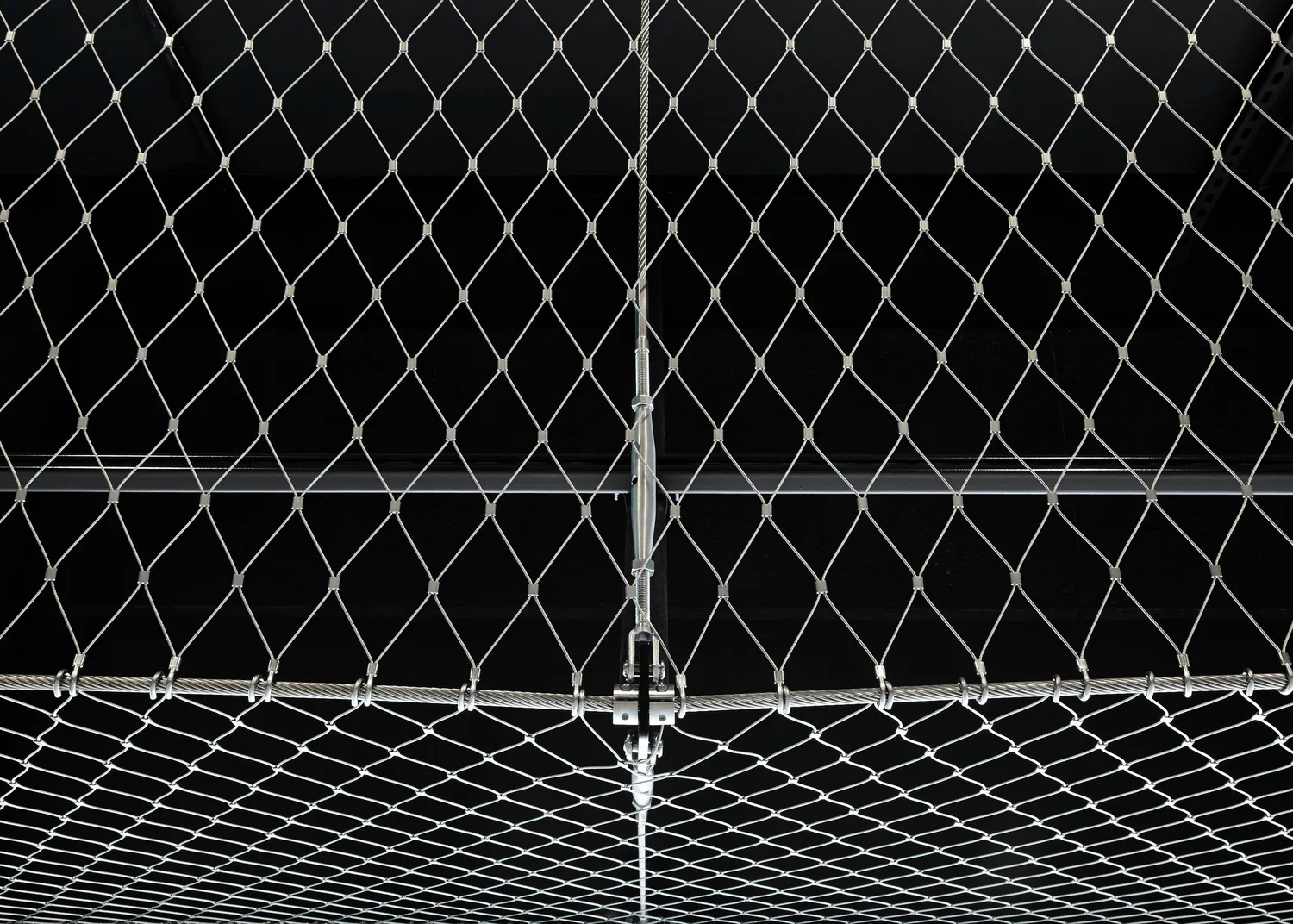

Webnet mesh
Stainless steel wire-rope mesh: strong, flexible and almost transparent.
Jakob safety and play nets
Jakob’s textile nets: EN 1263-1 fall-arrest nets, knotless safety and protection nets, and walk-on play nets, in many colours.
Stainless wire ropes
Architectural stainless ropes from Ø1 to Ø26 mm, in three constructions.
End fittings and tensioners
Threads, forks, eyes, turnbuckles and anchors that hold at least 90% of the rope’s strength.
ProjectsBuilt by Acier

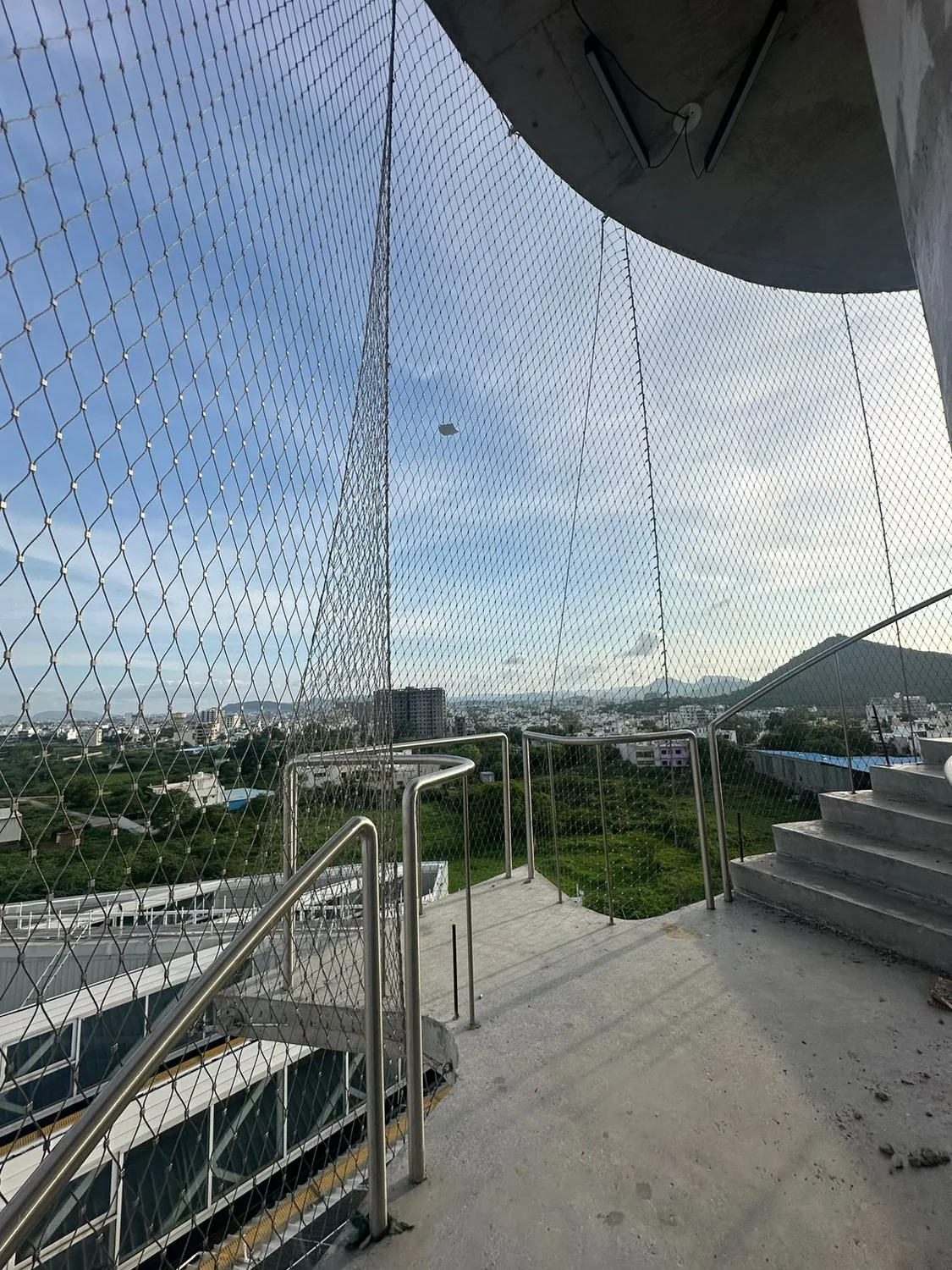

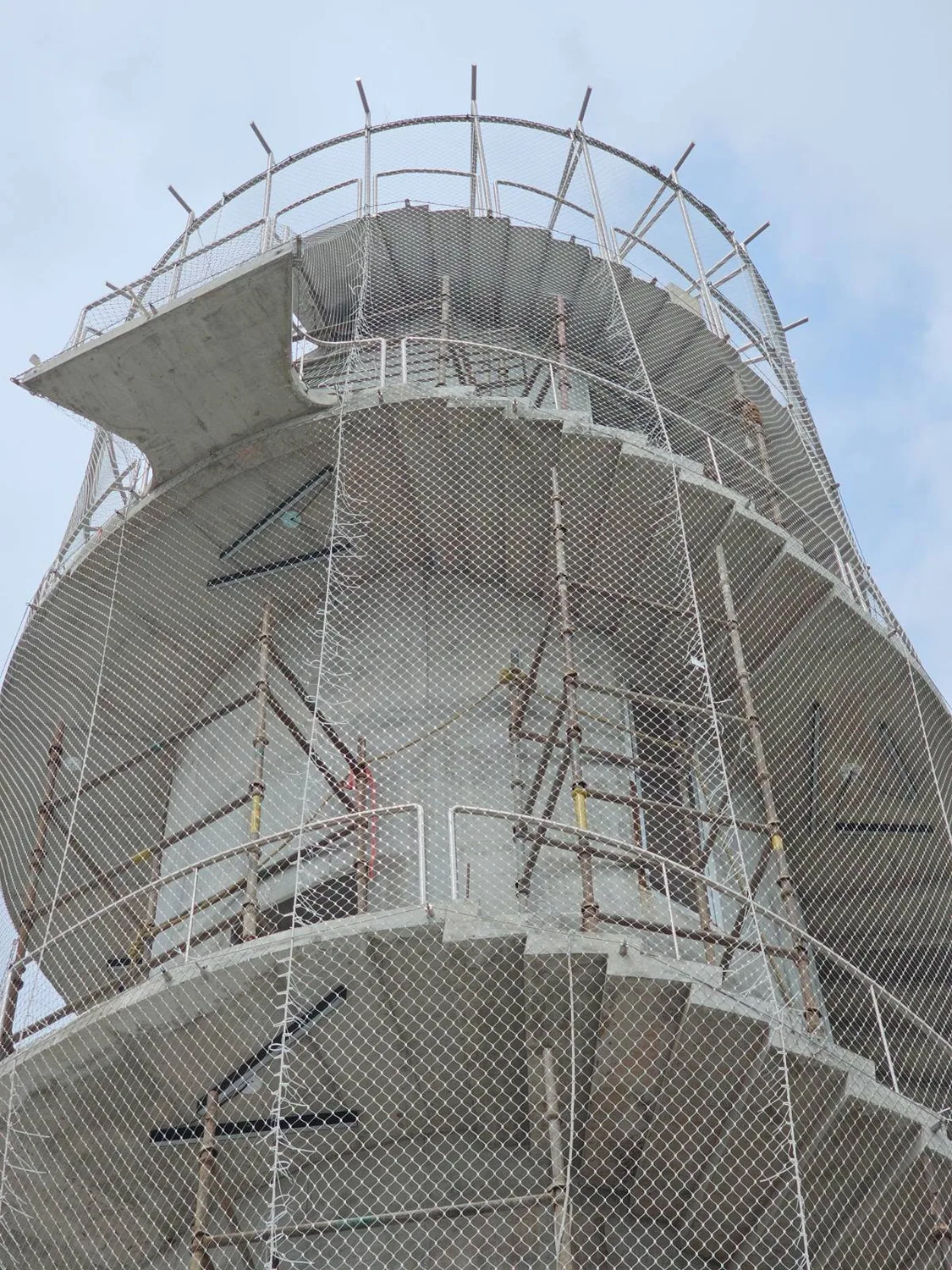

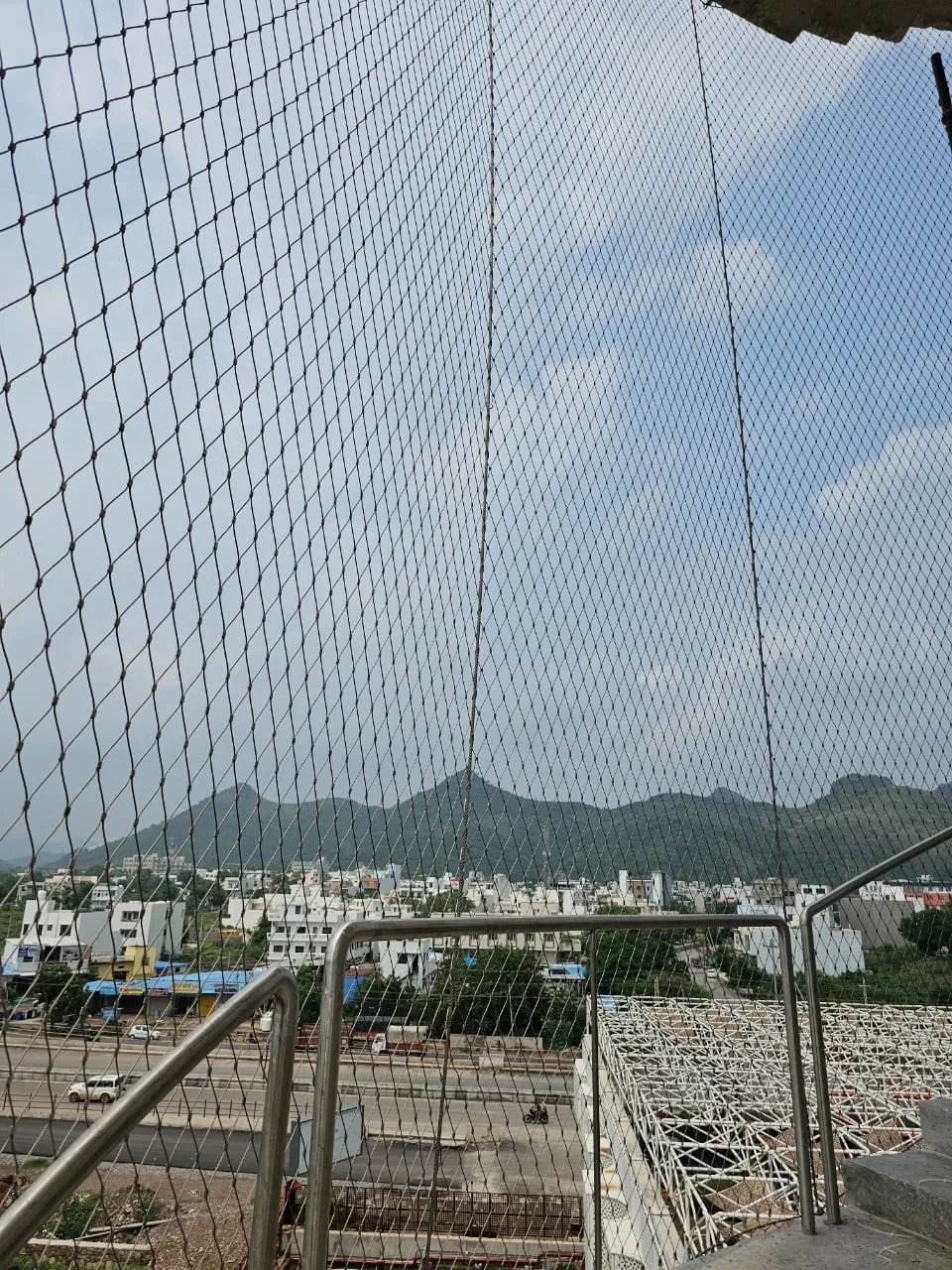

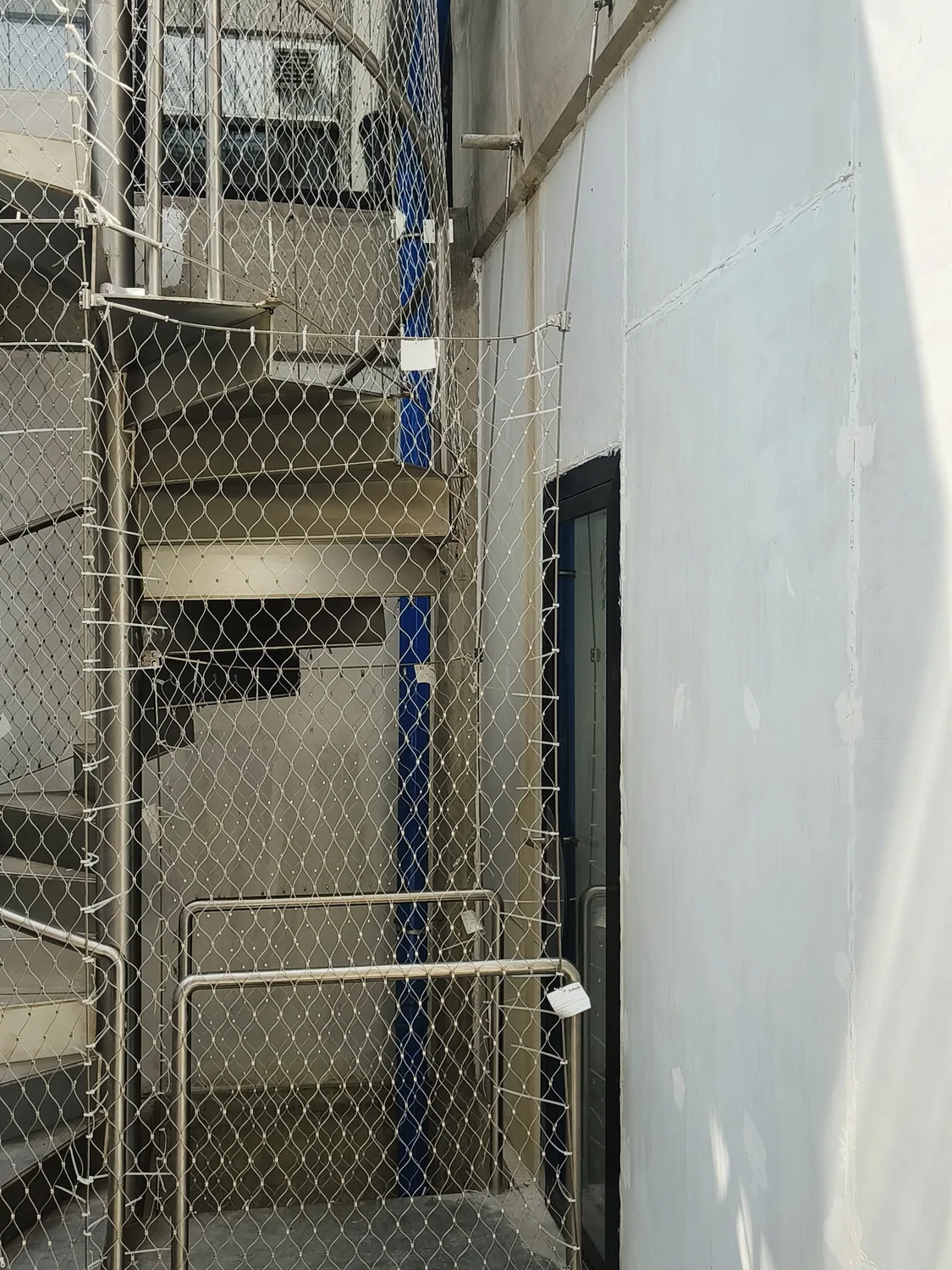

Stair tower safety nets, Third Space, Udaipur
Three spiral stair towers at Third Space, a science centre in Udaipur by Studio SAAR, netted with Jakob Webnet for fall protection.
Webnet railings, Third Space, Udaipur
About 1,300 m² of Webnet in railings, stair enclosures and tower nets at Third Space, a science centre in Udaipur designed by Studio SAAR, handed over in July 2024.
QuestionsFrequently asked
Is Webnet approved as a safety net?
Webnet has German general building approval DIBt Z-14.7-557. We design each installation to the load.
Will the net close in the space?
No. Webnet is a fine stainless rope mesh; from a few metres away it almost disappears, so the void, the view and the light stay open.
Stainless mesh or a textile net?
Stainless Webnet for permanent nets: it does not burn, rot or fade. Jakob’s polypropylene and polyester nets for temporary protection and indoor cover.
