Padel courts
Complete padel courts to the FIP rules: structure, glass, mesh, turf, net and lighting, handed over ready to play.
Photo: Wikimedia CommonsOverviewWhat it is
We build complete padel courts: the steel structure, 10 or 12 mm tempered glass, the mesh, artificial turf, LED lighting and the net, on a laser-levelled concrete slab. The FIP rules set the court at 20 × 10 m, 4 m high at the ends, with mesh openings of 5 to 7.08 cm on the diagonal and wire of 2 to 3 mm.
Options
Plan itPlan your court
Planner
Technical dataSizes and figures
FIP Rules of Padel
| Item | FIP rule |
|---|---|
| Court | 20 × 10 m |
| Back walls | 4 m: 3 m wall, 1 m metal mesh above |
| Side walls | Stepped or panoramic layouts, mesh to 3 or 4 m |
| Mesh openings | 5 to 7.08 cm on the diagonal |
| Mesh wire | 2 to 3 mm recommended, 4 mm maximum, tensioned so the ball bounces |
| Access | Single 1.05 × 2.0 m to 2.20 × 2.20 m, or two per side |
| Clear height | 6 m minimum, 8 m for new facilities |
Sports netting
| Netting | Typical use |
|---|---|
| Ball-stop net | Behind goals and courts |
| Practice nets | Cricket and batting practice |
| Divider nets | Between multi-sport courts |
PadelComplete padel courts
Yes, we build complete padel courts: design, slab advice, structure, glass, mesh, turf, net and lighting, handed over ready to play. A regulation court is 20 × 10 m, enclosed by 10 or 12 mm tempered glass and steel mesh to 4 m. The mesh openings are 50 to 70.8 mm on the diagonal, and there must be at least 6 m of clear height (8 m for new facilities). Once the slab has cured, the court goes up in about a week.
- Site survey. Space (about 11 × 21 m plus access), soil or roof structure, orientation and permissions.
- Design. Stepped or panoramic court, indoor or outdoor, lighting and drainage.
- Civil works. Sub-base, reinforced slab with a gentle fall, drainage and conduits.
- Curing. One to four weeks, depending on the concrete.
- Structure. Steel posts and frames anchored, mesh panels and doors fitted.
- Glass. 10 or 12 mm tempered panels installed.
- Turf. Laid, seams glued, lines fixed, sand infill brushed in.
- Net, lights, handover. Net fitted, lights aimed, lux test and a final check against FIP rules.

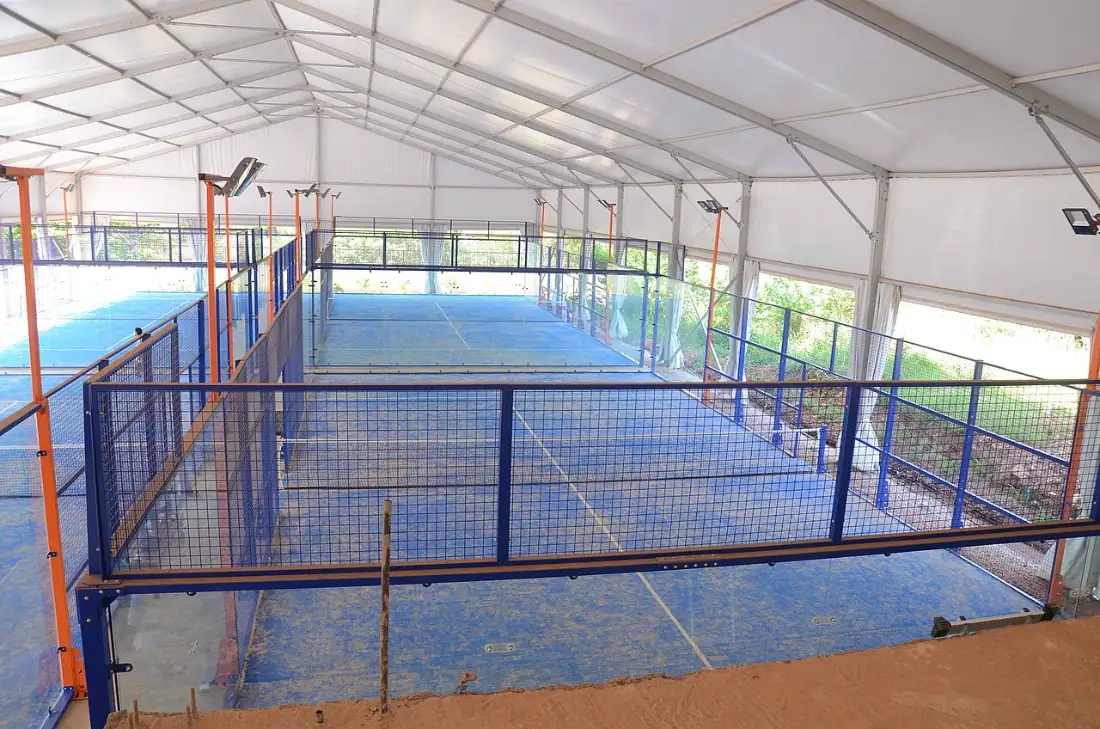

PhotosIn use
What we useProducts
ProjectsBuilt by Acier
DownloadsCatalogues and drawings
QuestionsFrequently asked
Do you build complete padel courts?
Yes: slab guidance, structure, glass, mesh, turf, lighting and net, installed and handed over ready to play. Once the slab has cured, a court goes up in about a week.
How high is a padel court enclosure?
4 m at the back: 3 m of glass with 1 m of mesh above. The sides step down towards the net depending on the layout.
What mesh is allowed on a padel court?
Openings between 5 and 7.08 cm measured on the diagonal, with wire of 2 to 3 mm (4 mm maximum).
