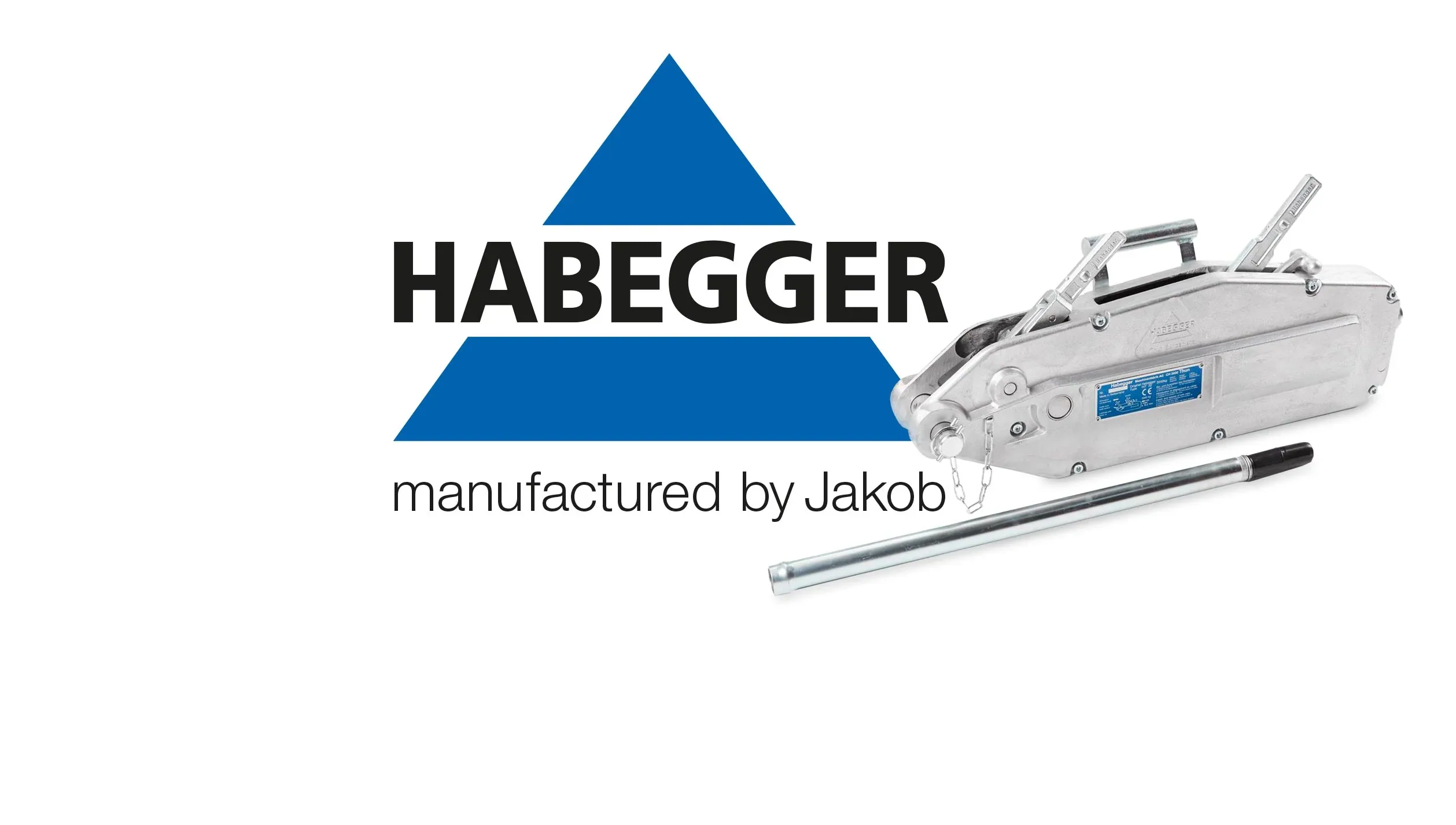

Habegger wire rope hoists
Hand-operated wire rope hoists for pulling and lifting, from 600 kg to 3.2 t.
Jakob referenceOverviewWhat it is
Habegger HIT hoists work on a simple principle: the rope passes through two pairs of clamping jaws, and moving the lever back and forth advances it smoothly without slipping. Both jaws clamp automatically under load, harder as the load rises.

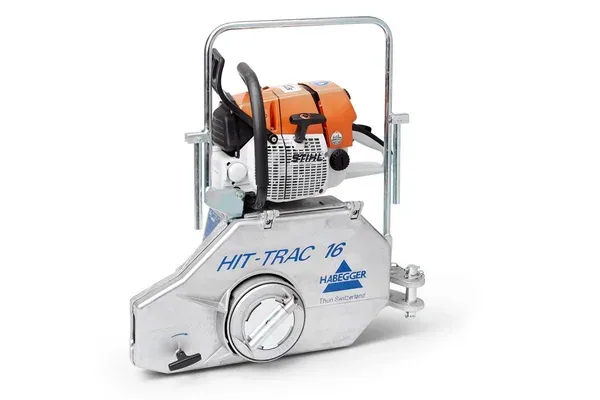

They lift, lower, secure and pull loads, tension ropes and position heavy parts on site. Motorised HIT-TRAC models are available on request.
Options
Planner
Technical dataSizes and figures
Habegger HIT hand hoists · shear-pin overload protection
| Model | Goods (kg) | People (kg) | Rope Ø (mm) | Weight (kg) | Lever effort (kg) | Rope per stroke (mm) |
|---|---|---|---|---|---|---|
| HIT-6 | 600 | 500 | 6.4 | 4.2 | 25 | 30 |
| HIT-10 | 1,000 | 800 | 8.4 | 6.5 | 30 | 55 |
| HIT-16 | 1,600 | 1,200 | 11.2 | 12 | 35 | 60 |
| HIT-32 | 3,200 | 2,400 | 16.2 | 22.5 | 50 | 30 |
Source: Habegger H2 catalogue. Motorised HIT-TRAC models, 800 kg to 12.8 t, on request.

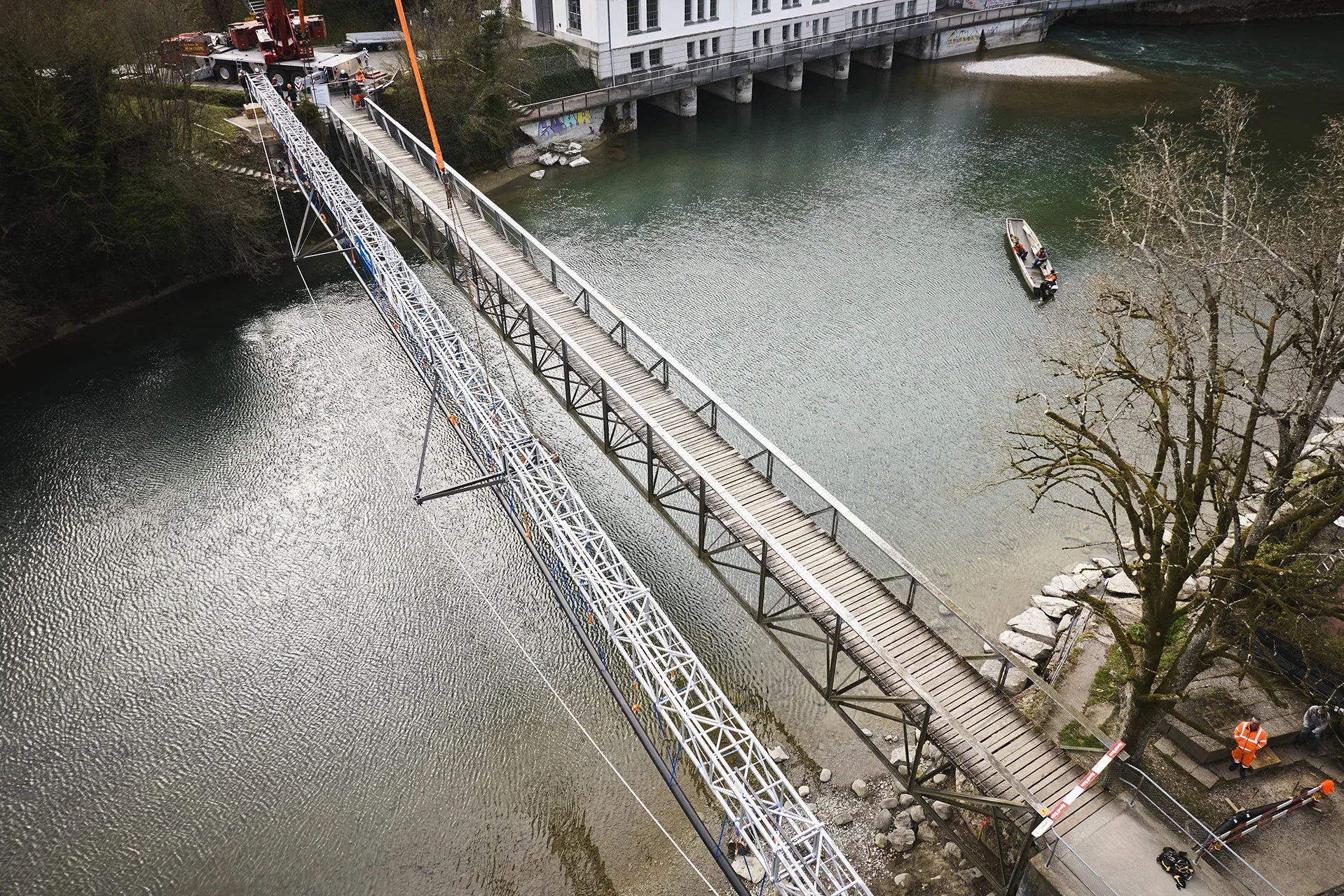

PhotosIn use
DownloadsCatalogues and drawings
Jakob catalogues open on jakob.com, so you always get the current edition.
Where it’s usedUses
Uses as Jakob lists them for Habegger hoists.
QuestionsFrequently asked
Can a HIT hoist lift people?
Yes, within its personnel rating and with the right safety arrester. For example, the HIT-16 is rated 1,600 kg for goods and 1,200 kg for people.
How far does one stroke move the rope?
Between 30 and 60 mm per double stroke, depending on the model.
