Acier rangeMetal mesh
Woven architectural mesh
Rigid woven stainless fabric of rods and cables for façades and interiors.
MaterialStainless steel
WeavesRod and cable
UsesFaçades, infills, ceilings
ScopeDesign to installation
Photo: Wikimedia CommonsOverviewWhat it is
Woven architectural mesh combines fine stainless rods with cables in a tight weave. It is rigid enough to span between fixings, and its texture changes with the light.
We specify it for façades, balustrade infill, ceilings and feature walls, to the opening and finish you want.
Options
WeaveRod and cable combinations
MaterialStainless steel
FixingTensioning bars, clamps, frames
FinishNatural, bright or coloured
Plan it
Open the planner →Try Woven architectural mesh in the façades planner
Our planners sit on the application pages, so you see the product where it is used.
Technical dataSizes and figures
Example weaves in mm (approximate)
| Rod pitch | Rod Ø | Cable pitch | Cable Ø | Open area (%) | Weight (kg/m²) |
|---|---|---|---|---|---|
| 6 | 1.5 | 20 | 2 | 68 | 3.6 |
| 8 | 2 | 30 | 3 | 68 | 5.1 |
| 12 | 2 | 40 | 3 | 77 | 3.5 |

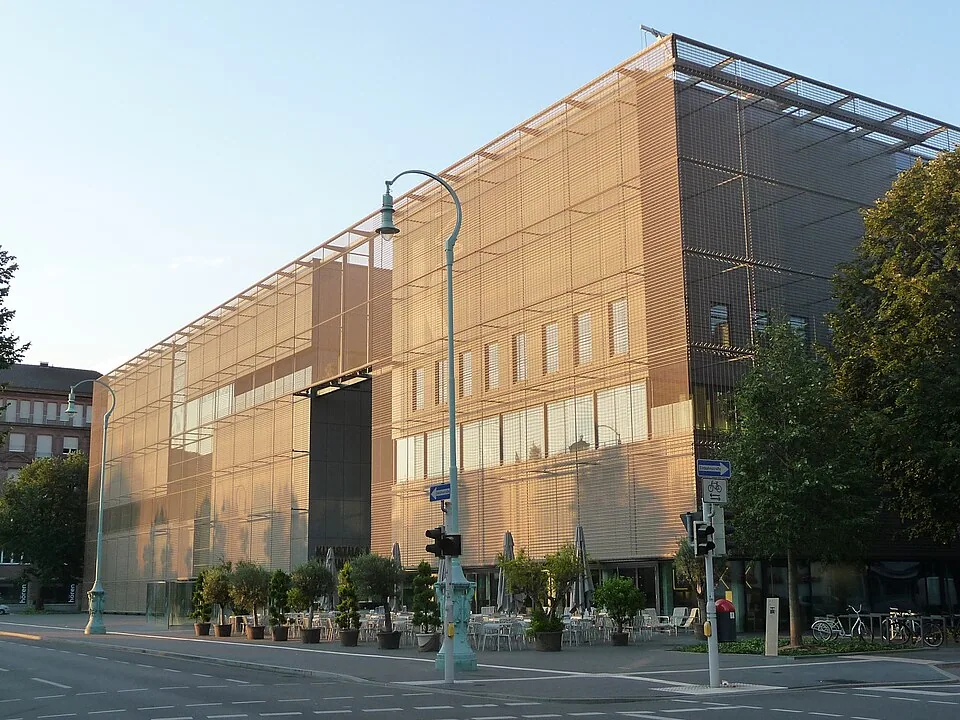

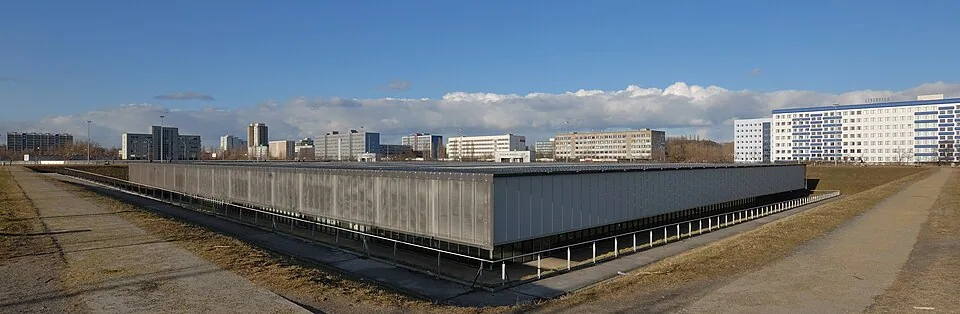

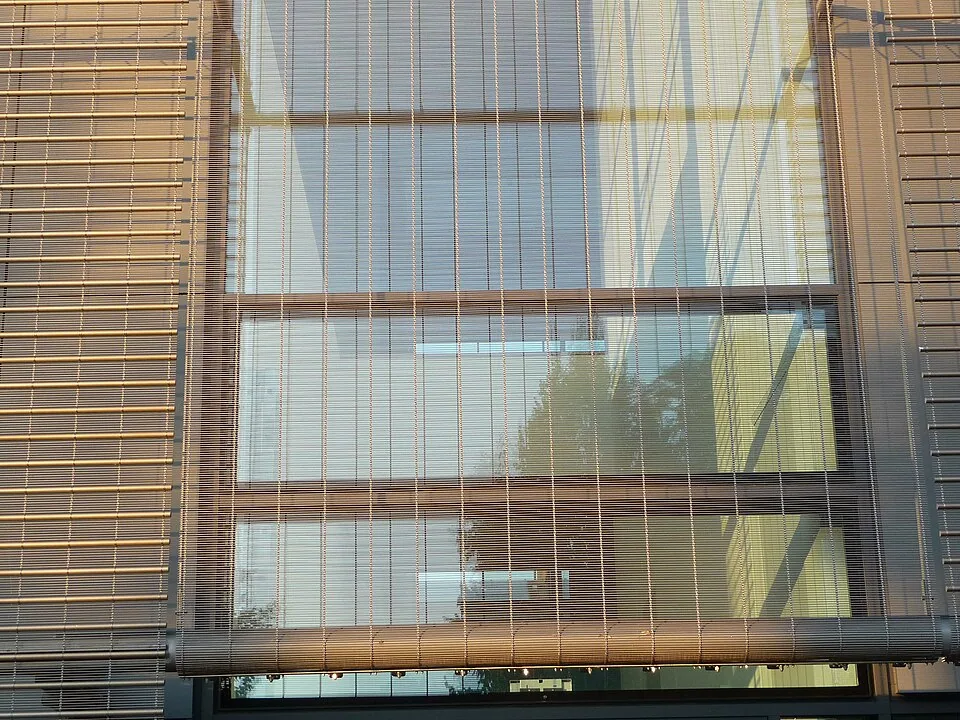

PhotosIn use
DownloadsCatalogues and drawings
Where it’s usedApplications
QuestionsFrequently asked
How is woven mesh fixed?
Usually with tensioning bars at the top and bottom, or in frames. We design the fixings with the façade.
