Acier rangeMetal mesh
3D and welded mesh
Rigid flat and 3D-folded welded panels for walls, screens and planted boundaries.
TypesFlat and 3D-folded
WireTypically Ø4 to 6 mm
MaterialMS or stainless
FinishGalvanised, powder-coated
Photo: Wikimedia CommonsOverviewWhat it is

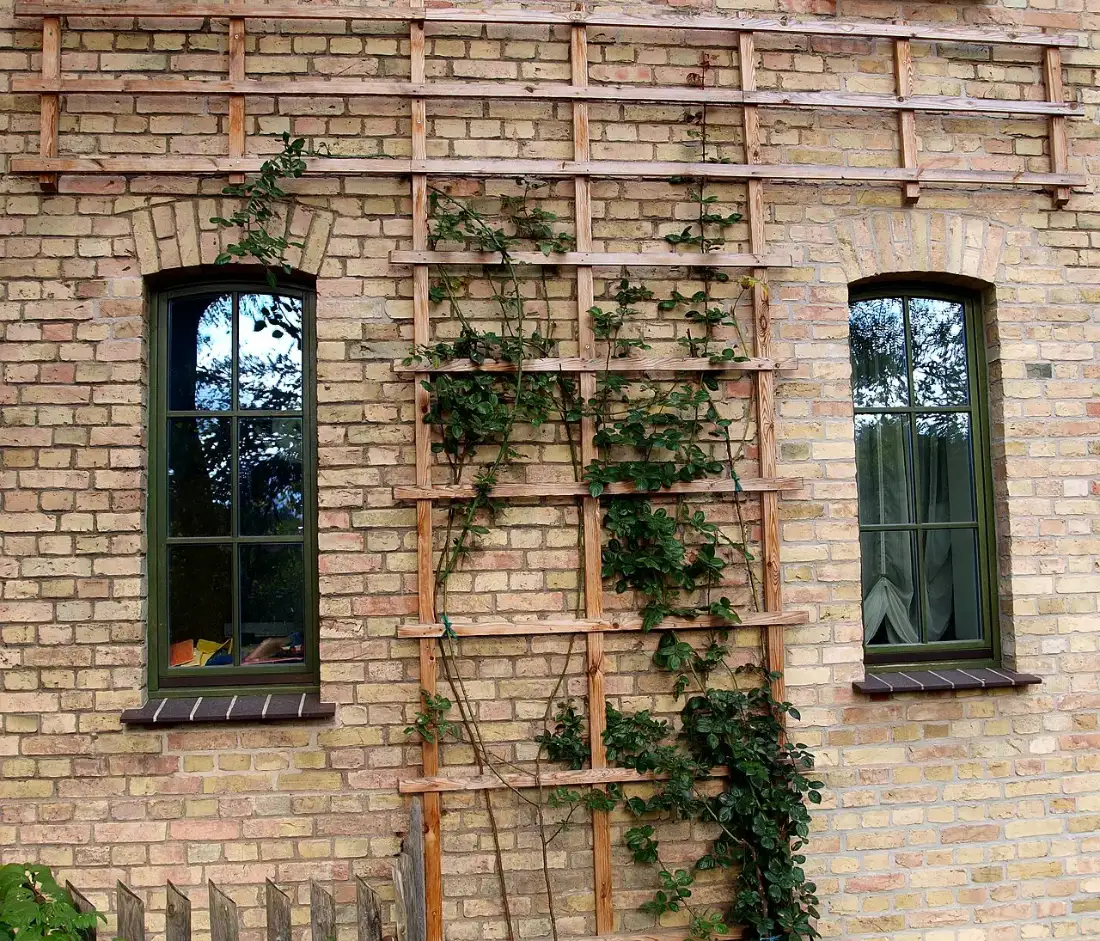

Welded mesh panels sized to the wall: flat for trellis and screens, or folded into 3D panels for stiff, long boundary runs that climbers can cover.
Galvanised and powder-coated MS for most sites, stainless steel where the mesh must stay bright or sits by the sea.
Options
Mild steelHot-dip galvanised, then powder-coated in any RAL
StainlessSS 304 or 316
OpeningsTypically 50 × 50 to 100 × 200 mm [to project]
PostsMatching posts and clamps
Plan it
Open the planner →Try 3D and welded mesh in the sports planner
Our planners sit on the application pages, so you see the product where it is used.
Technical dataSizes and figures
Typical welded mesh (square), before coating
| Opening (mm) | Wire Ø (mm) | Open area (%) | Weight bare steel (kg/m²) |
|---|---|---|---|
| 50 × 50 | 4 | 86 | 3.65 |
| 50 × 50 | 5 | 83 | 5.60 |
| 100 × 100 | 5 | 91 | 2.94 |
| 100 × 100 | 6 | 89 | 4.19 |
| 150 × 150 | 6 | 92 | 2.85 |
PhotosIn use
DownloadsCatalogues and drawings
Where it’s usedApplications
QuestionsFrequently asked
Flat or 3D panels?

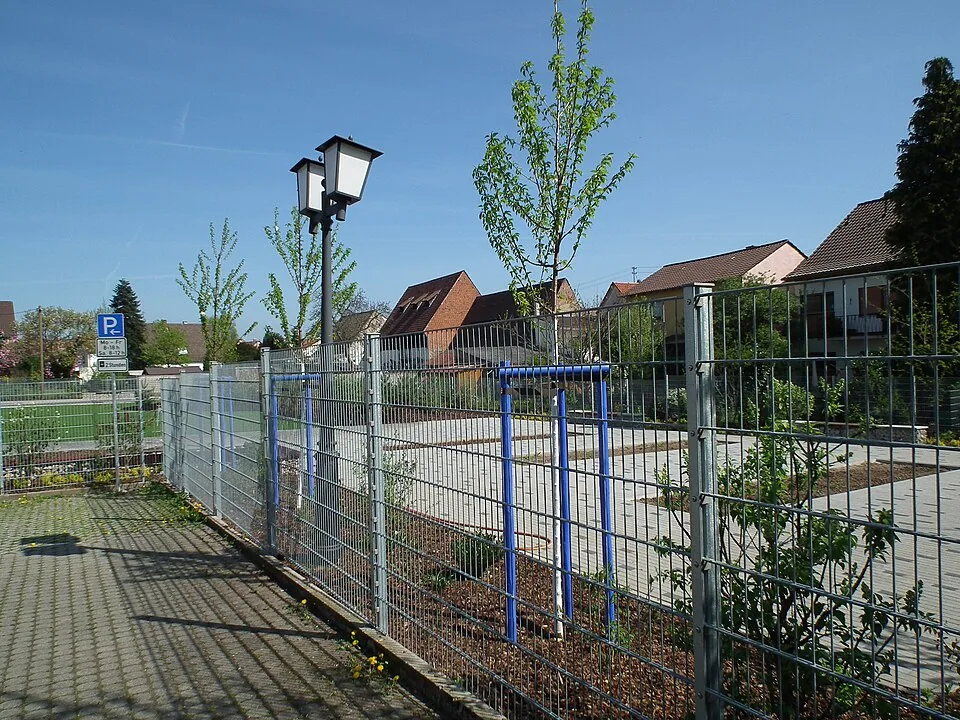

3D panels have folds that make them much stiffer, so they suit long boundaries and taller fences. Flat panels suit walls and screens.

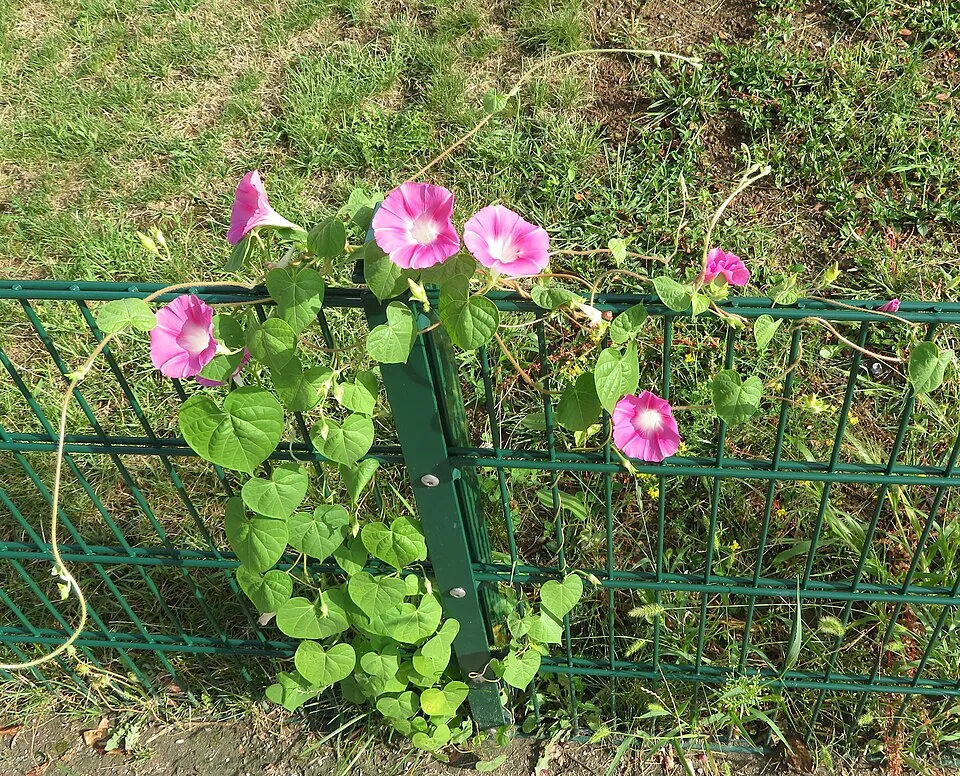

Will climbers grow on welded mesh?
Yes, especially twining and tendril climbers. We plan the planting with the panel.
