Jakob safety and play nets
Jakob’s textile nets: EN 1263-1 fall-arrest nets, knotless safety and protection nets, and walk-on play nets, in many colours.
Jakob referenceOverviewWhat it is
Jakob makes a family of textile nets. The fall-arrest net to EN 1263-1 type S catches people below working areas. Knotless polypropylene and polyester nets protect edges, voids, stairs and sports areas. WalkNet is a walk-on and climbing net for play areas, atriums and rope parks.
Polypropylene is the outdoor choice: it doesn’t absorb water and resists weather. Every net is made to size, with border ropes and fixings.
Options
Try Jakob safety and play nets in the safety planner
Our planners sit on the application pages, so you see the product where it is used.
Technical dataSizes and figures
Jakob textile nets: standard range, other sizes and colours on request
| Net | Rope | Mesh (mm) | Colours | For |
|---|---|---|---|---|
| Safety net, type S | Ø5 mm, polypropylene, high tenacity | 45, 60, 100 | Standard, Green, Dark green, Orange, Black, White, Blue, Red | Fall protection on façades, atria, roofs and bridges |

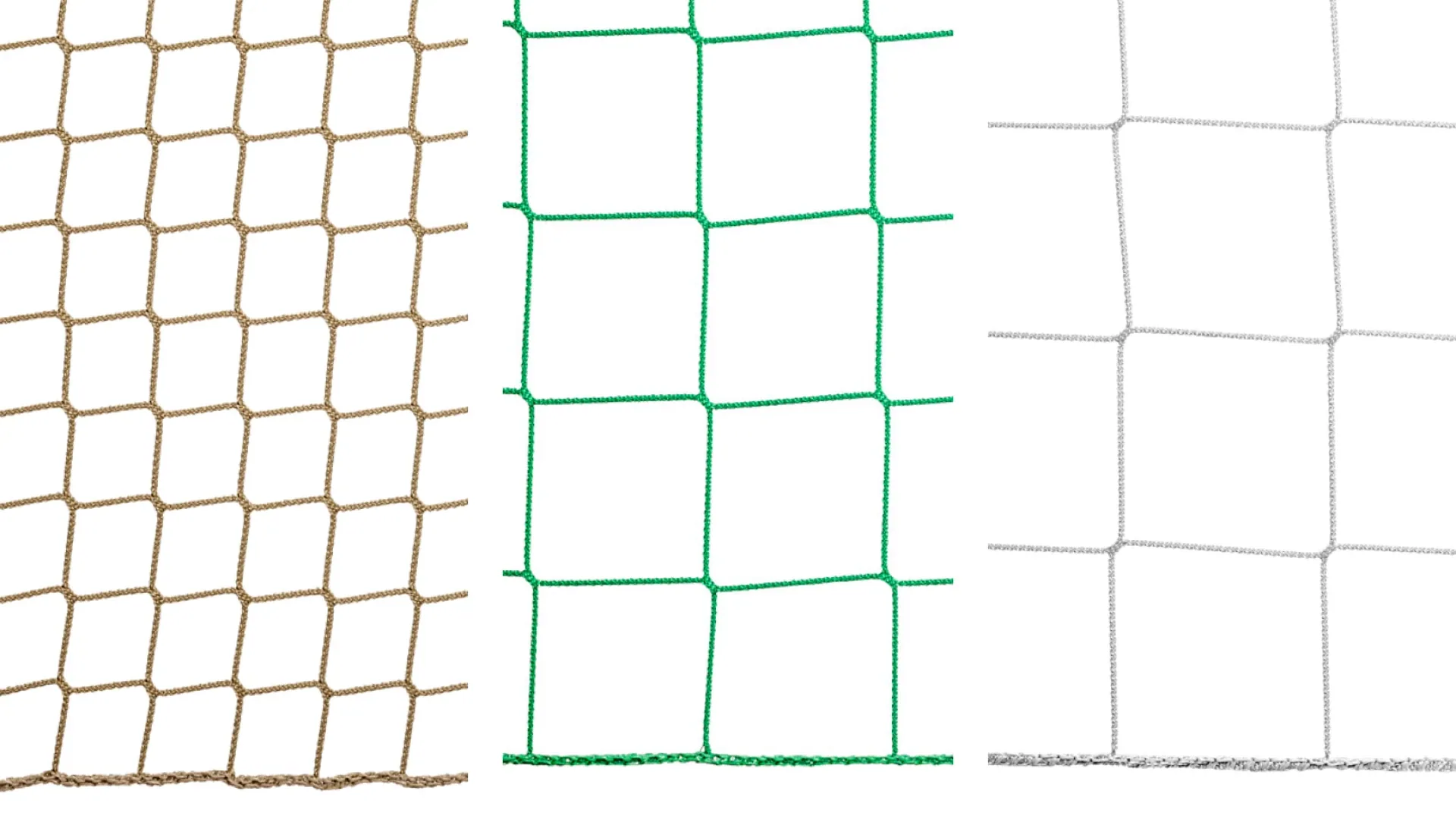

| Knotless net Ø3 mm | Ø3 mm, polypropylene | 45, 100, 120 | Green, White, Blue, Yellow, Black, Red, Beige | Balconies, stairwells, play and sports areas, ball stops |

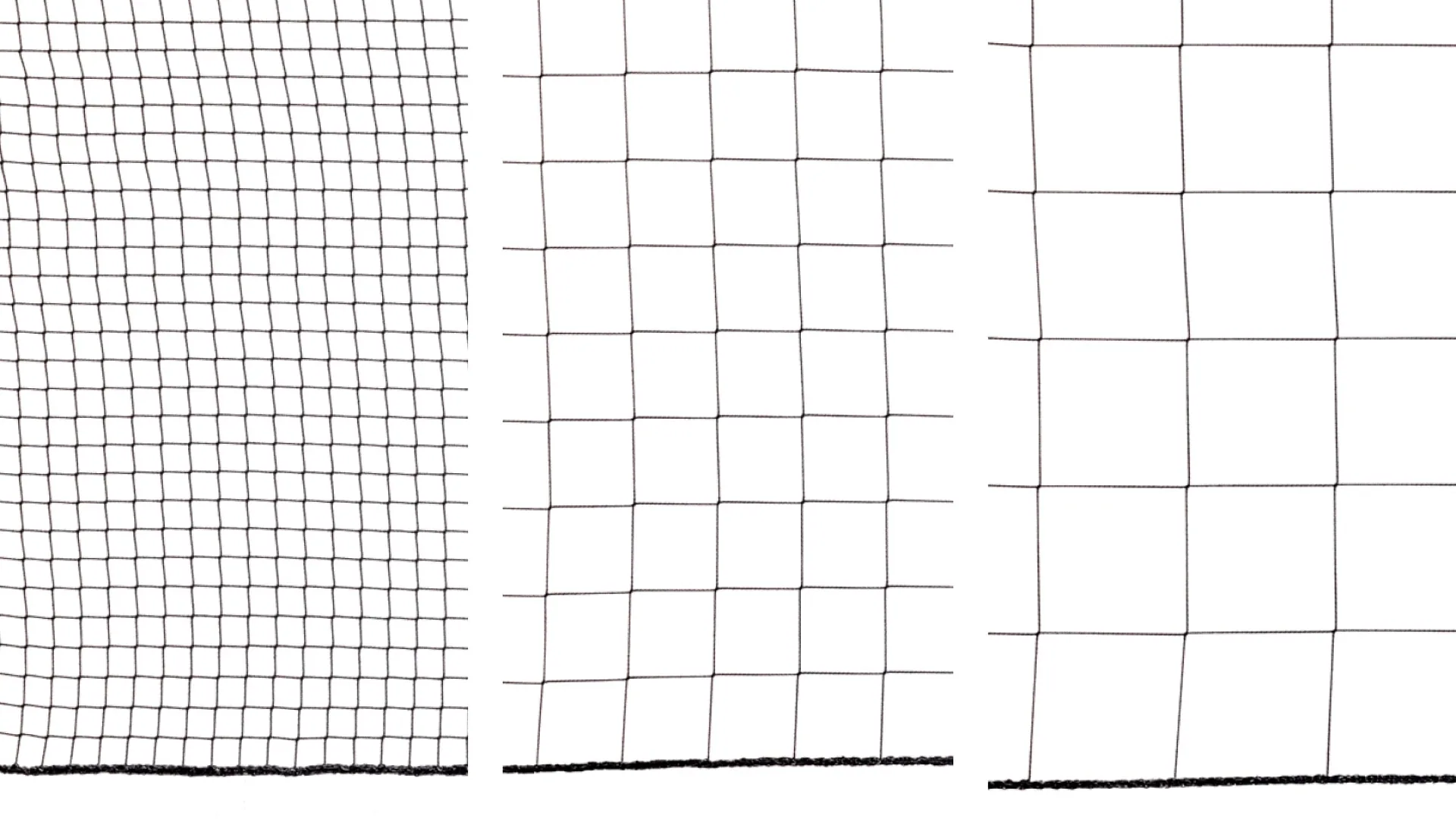

| Knotless net Ø1.5 mm | Ø1.5 mm, polypropylene | 20, 30, 60, 100 | Black, White (30 mm) | Covers, debris and bird protection, light screens |
| Polyester net Ø3 mm | Ø3 mm, polyester (indoor) | 35, 45, 100, 130 | White | Indoor atria, stairwells, gyms and halls |
| WalkNet | Ø16 mm, polyester rope with a steel core | 60° or 90° geometry | Beige, Red, Blue, Orange, Green, Black | Walk-on nets, playgrounds and climbing structures |
Safety net type S
| Property | Type S value |
|---|---|
| Standard | EN 1263-1, type S |
| Net rope | Ø5 mm polypropylene |
| Border rope | Ø12 mm, 30 kN |
| Mesh | 45, 60 or 100 mm |
| Sizes | Made to order |
ChoosingWhich net for which job
Play: WalkNet walk-on and climbing nets, tested to the playground standard EN 1176. Safety: type S fall-stop nets to EN 1263-1 for work at height, atria and bridges. Cover: knotless polypropylene and polyester nets for balconies, stairwells, halls and ball stops.
For helipad perimeters and permanent ball-stops we recommend stainless steel Webnet instead: it does not burn, rot or fade. Helipad safety nets: the rules →
PhotosIn use
DownloadsCatalogues and drawings
Jakob catalogues open on jakob.com, so you always get the current edition.
Where it’s usedApplications
QuestionsFrequently asked
What does type S mean?
EN 1263-1 type S is a safety net with a border rope, used horizontally to catch falls. It is the common type for work in construction.
Which mesh should we choose?
100 mm is standard for fall arrest; 45 and 60 mm also stop smaller tools and debris.
What is WalkNet?
A walk-on and climbing net of Ø16 mm steel-cored polyester rope, for playgrounds, atriums, rope parks and play areas. It meets the EN 1176 playground standard.
