Webnet EVO patterned mesh
Webnet with lively shapes: five patterns that mix mesh sizes in one net.
Jakob referenceOverviewWhat it is
Webnet EVO extends Webnet with patterns. Instead of one repeating diamond, each type combines two opening sizes or shapes in a rhythm, reminiscent of honeycombs and waves, so the net itself becomes a design element for façades, balustrades and screens.

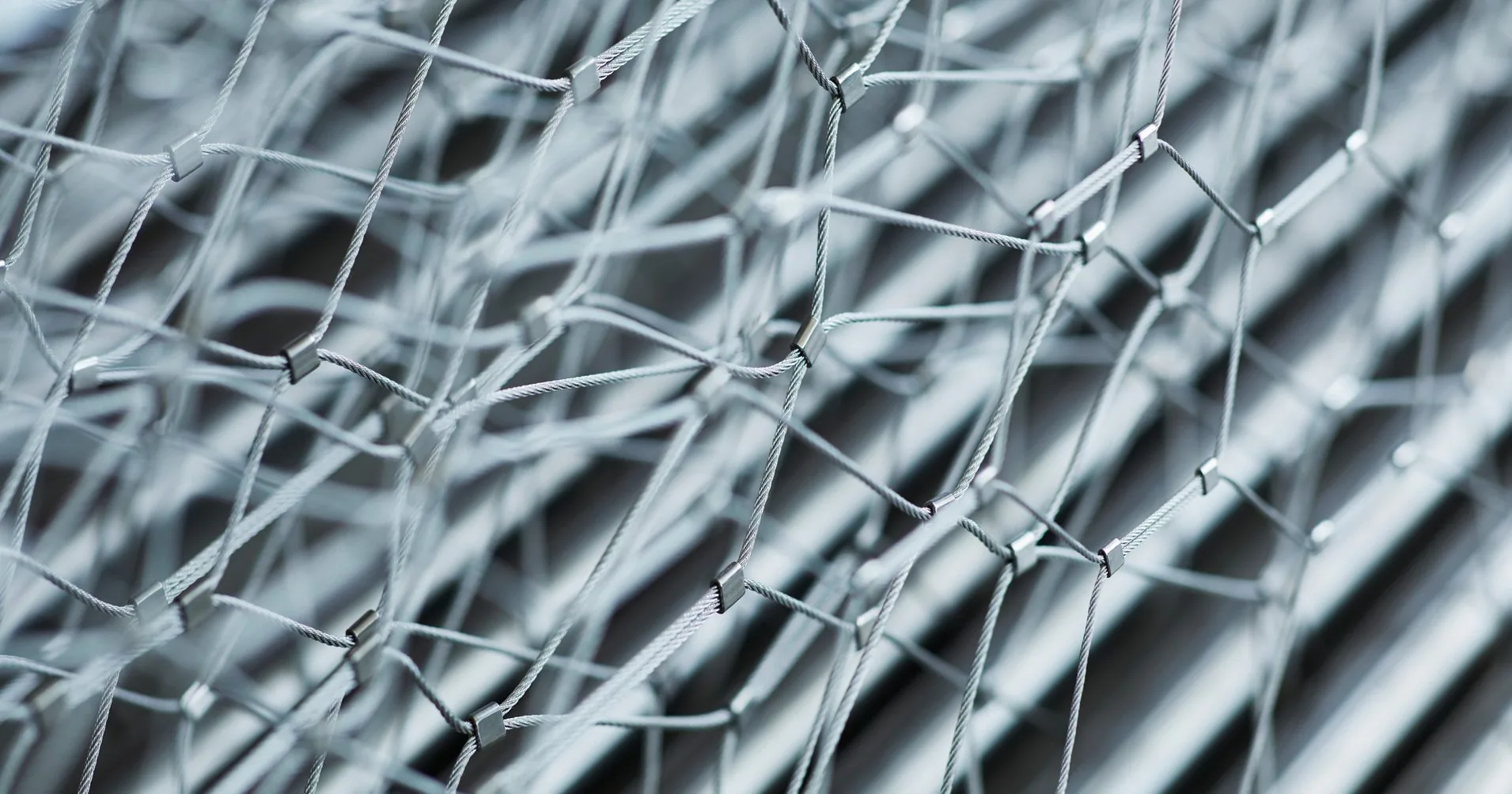

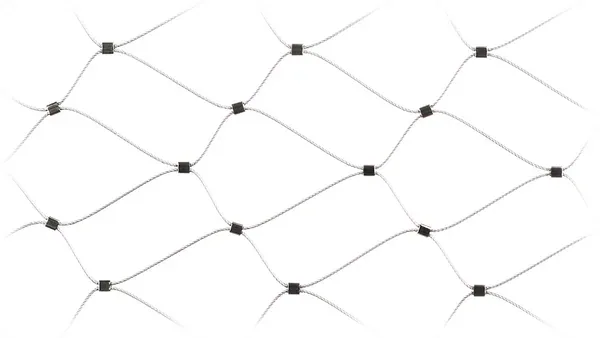

Every EVO type uses Ø2 mm stainless rope (minimum breaking load 2.4 kN) with swaged 7.5 × 7.5 × 4 mm sleeves, AISI 316 throughout. Webnet EVO was nominated for the Design Prize Switzerland 2021.
Options

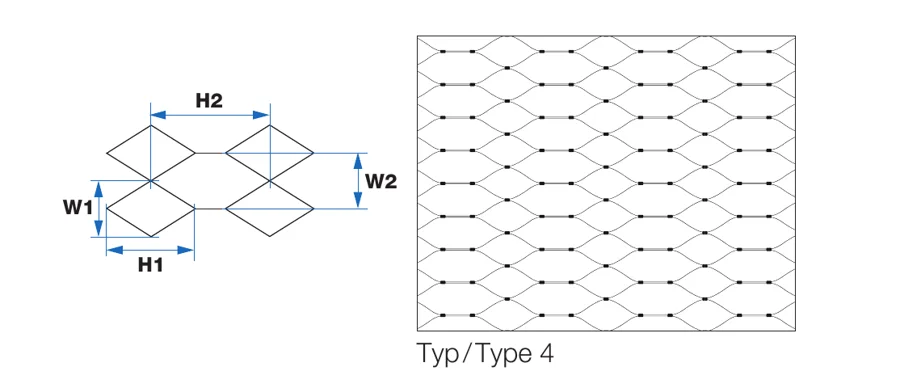

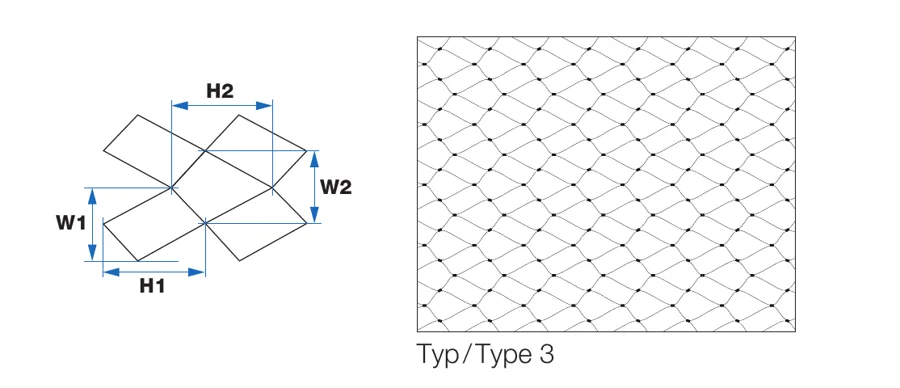

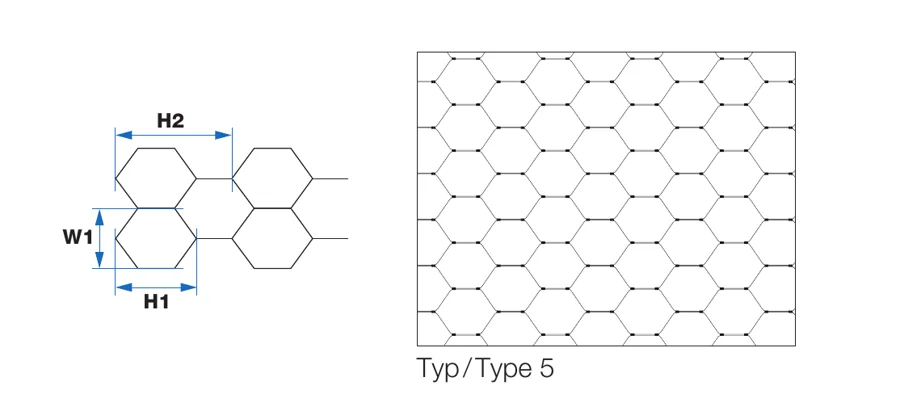

PatternsFive Webnet EVO patterns

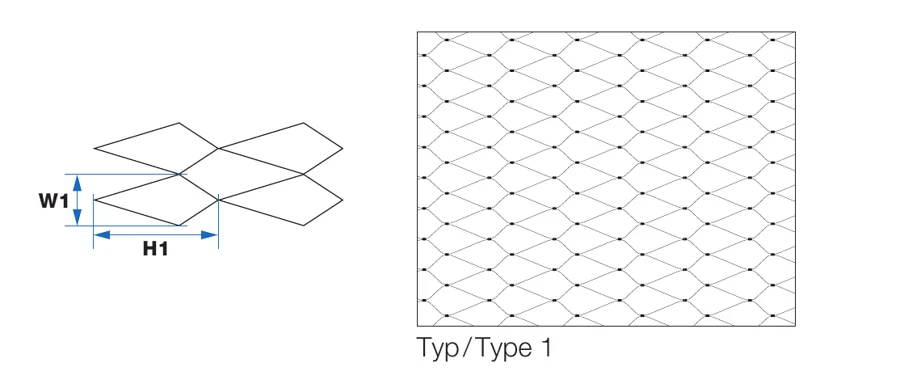

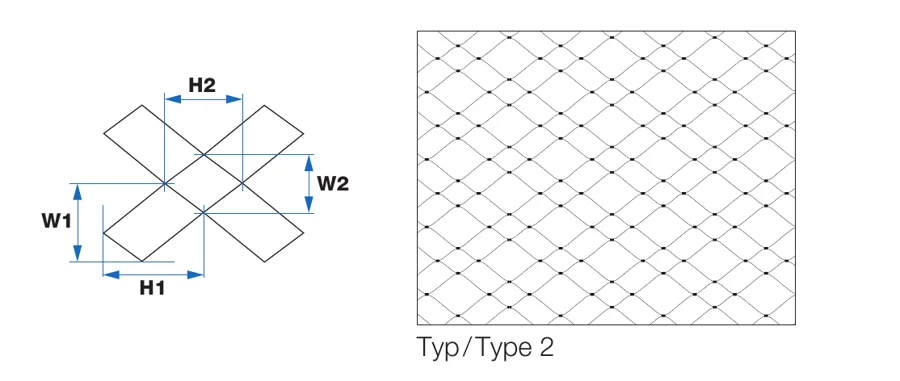

Each pattern comes in an a (smaller) and b (larger) size. Tap a pattern to see it larger with its sizes. The drawings are from Jakob’s Webnet EVO datasheet.
Technical dataSizes and figures
Webnet EVO · rope Ø2 mm, 6×7 + WC, MBL 2.4 kN · AISI 316
| Type | W1 (mm) | H1 (mm) | W2 (mm) | H2 (mm) | Weight (kg/m²) |
|---|---|---|---|---|---|
| 1-a | 68 | 145 | – | – | 0.69 |
| 1-b | 83 | 170 | – | – | 0.53 |
| 2-a | 73 | 112 | 55 | 88 | 0.73 |
| 2-b | 88 | 159 | 66 | 127 | 0.52 |
| 3-a | 73 | 109 | 73 | 109 | 0.75 |
| 3-b | 98 | 150 | 98 | 150 | 0.49 |
| 4-a | 50 | 92 | 50 | 121 | 1.15 |
| 4-b | 70 | 124 | 70 | 164 | 0.71 |
| 5-a | 75 | 109 | – | 148 | 0.84 |
| 5-b | 90 | 130 | – | 180 | 0.64 |

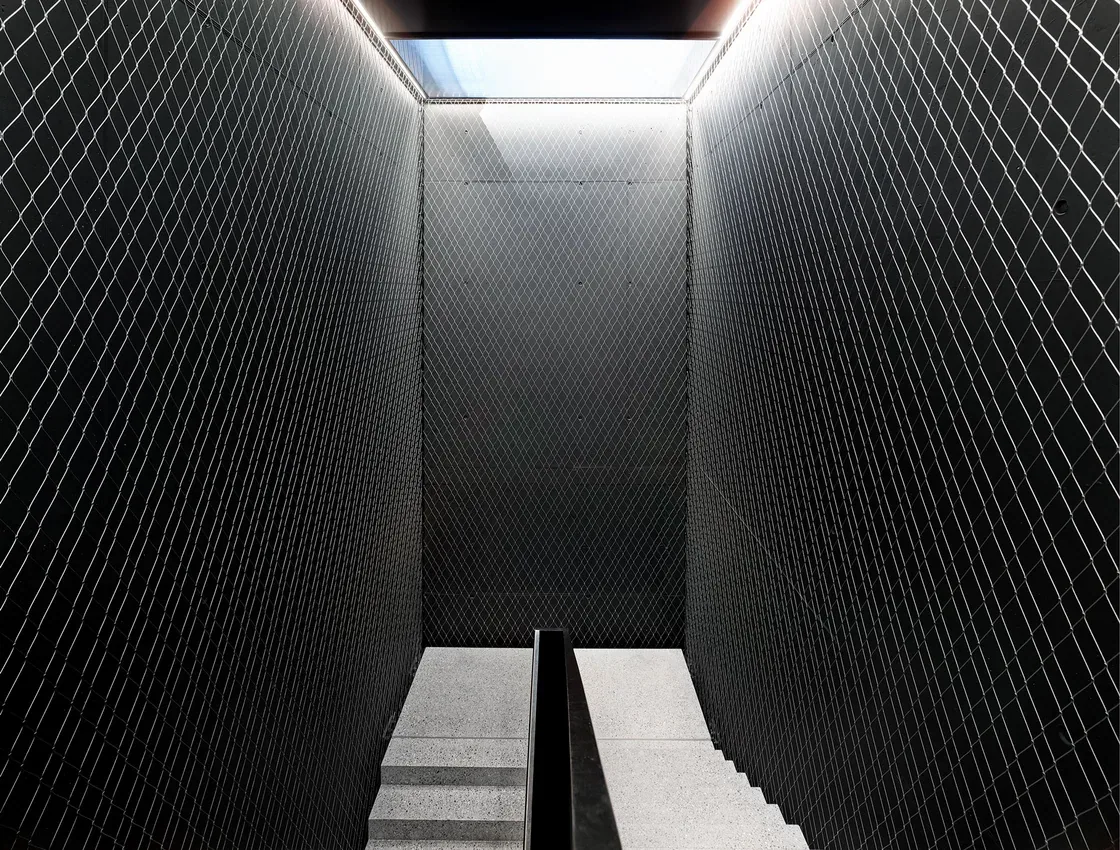

PhotosIn use
DownloadsCatalogues and drawings
Jakob catalogues open on jakob.com, so you always get the current edition.
Where it’s usedApplications
QuestionsFrequently asked
Is Webnet EVO as strong as Webnet?
EVO uses the same Ø2 mm stainless rope as standard Webnet, with a minimum breaking load of 2.4 kN. The pattern changes how the load spreads, so we engineer each installation.
Where does EVO work best?
Façade screens, feature balustrades and interior partitions, anywhere the mesh is seen up close and should carry a design.
