Acier rangeMetal mesh
Chain-link fencing
Woven fencing for perimeters, pens, service yards and courts.
MeshTypically 25 to 75 mm
WireTypically 2.5 to 4 mm
FinishGalvanised or PVC-coated
PostsMS, galvanised
Photo: Wikimedia CommonsOverviewWhat it is

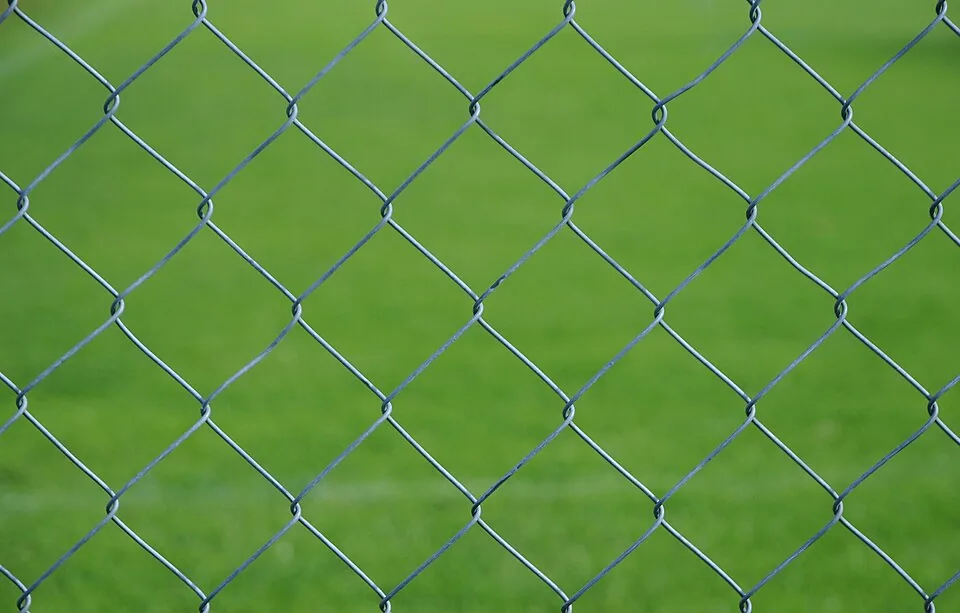

Chain-link is woven diamond wire: flexible and quick to install over long runs. We supply it galvanised or PVC-coated with matching posts, gates and hardware.

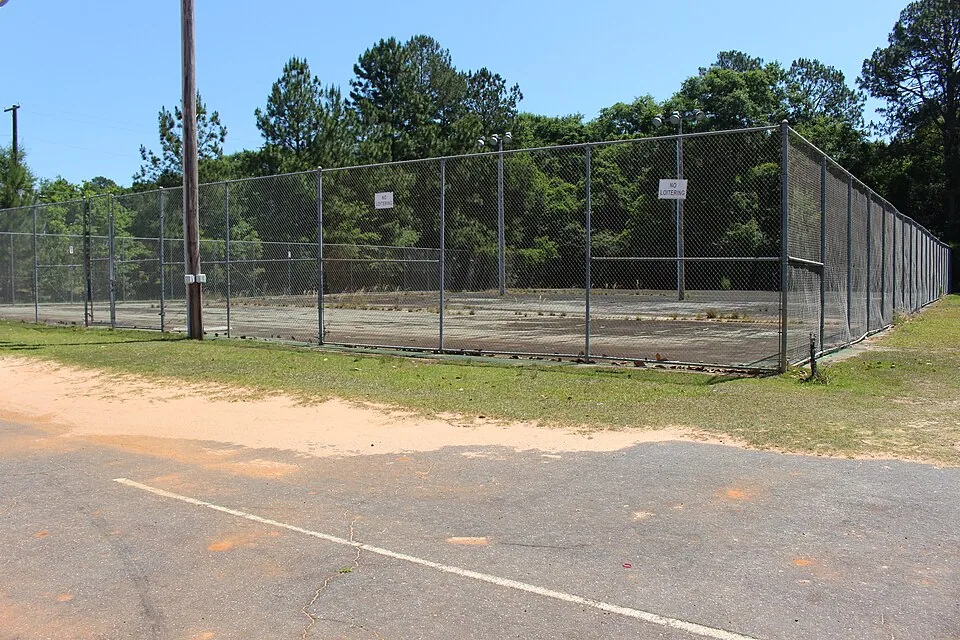

It suits holding areas and service yards at zoos, site and campus perimeters and sports grounds.
Options
FinishGalvanised or PVC-coated (green, black)
Posts and gatesGalvanised or powder-coated MS
TopBarbed wire or concertina where needed
HeightsTo the project
Plan it
Open the planner →Try Chain-link fencing in the sports planner
Our planners sit on the application pages, so you see the product where it is used.
Technical dataSizes and figures
Typical chain-link (approximate)
| Mesh (mm) | Wire Ø (mm) | Open area (%) | Weight bare steel (kg/m²) |
|---|---|---|---|
| 25 | 2.5 | 83 | 3.14 |
| 50 | 3 | 89 | 2.35 |
| 50 | 4 | 86 | 4.09 |
| 75 | 4 | 90 | 2.80 |
PhotosIn use
DownloadsCatalogues and drawings
Where it’s usedApplications
QuestionsFrequently asked
Galvanised or PVC-coated?
Galvanised is the standard; PVC coating adds colour and extra protection, for example near the sea.
